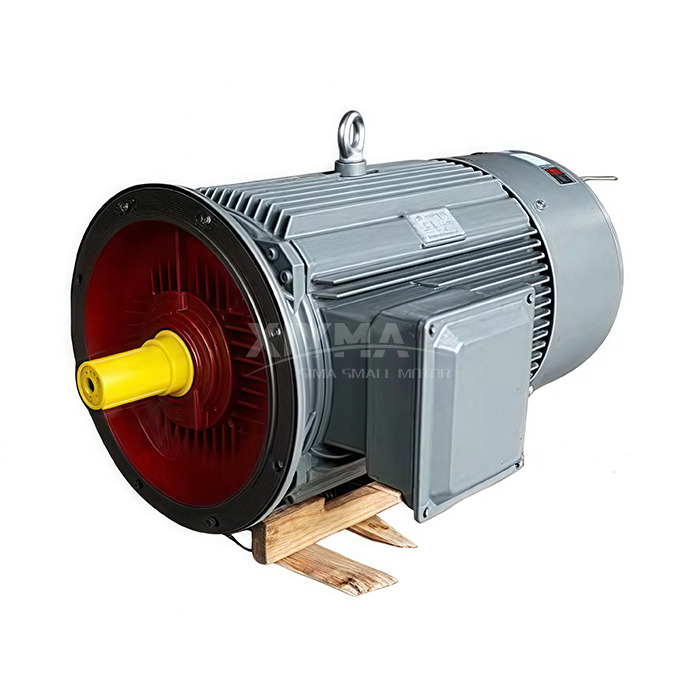

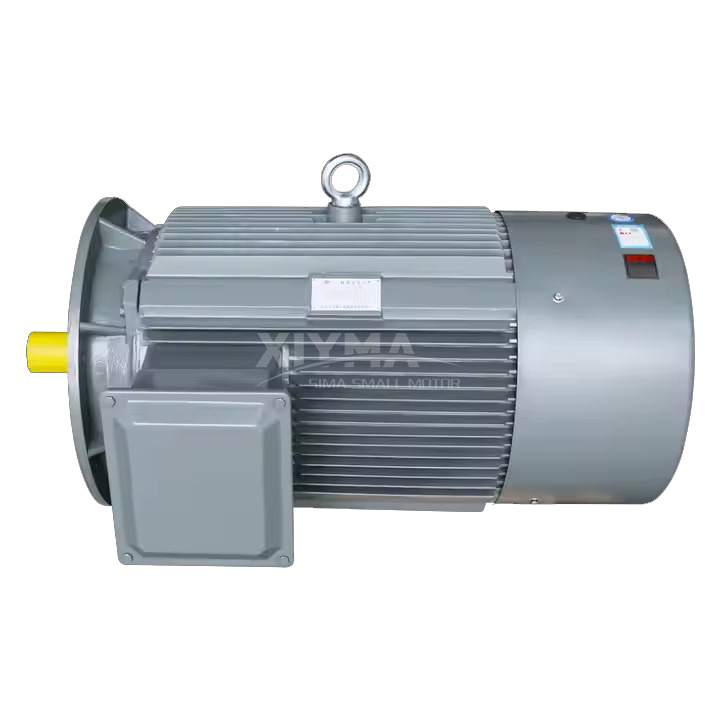

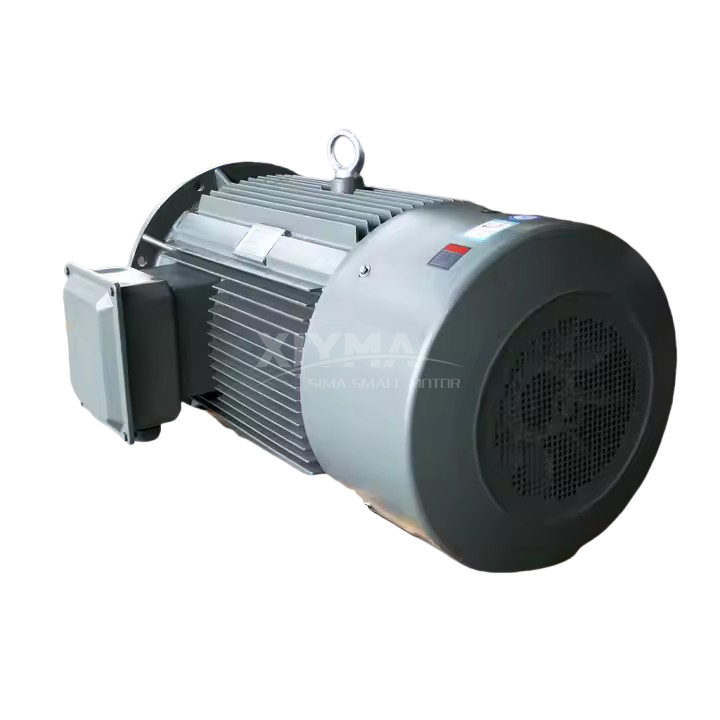

280M 6 Pole 50hz 660v Asynchronous 1000rpm Motor

Warranty period: 12 months
model: YE3-280M-6
Frequency: 50Hz
Phase: Three phase
Protective feature: fully enclosed
Motor efficiency: IE 3
Motor model: Flange mounted motor
Rated output power: 50kw
Rated speed: 985r/min
Rated currency: 59.5A
Efficiency: 94.1%
Power factor cos phi: 0.86
Net weight: 555kg
Housing: Cast Iron
Framework: 280 meters
Availability:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

page_08 (2)page_08 (3)page_08 (4)page_08 (5)page_08 (6)page_08 (7)page_08 (8)page_08 (1)

series is derivative from Y2 series so the frame NO. and installation size corresponding to the same power are consistent with Y2 series, but the overall shape is appropriately longer. The motor is equipped with a separate axial fan as the cooling air source to ensure the temperature rise of the motor at low frequencies. The motor can be matched with various kinds of frequency conversion equipment at home and abroad, and its constituting speed control system is characterized by remarkable energy conservation, wide speed range, strong overload capability and excellent low- speed performance. It is extensively used in metallurgy, mining, petrochemical, textile, light industry and paper-making industry, etc.

What we offer

Competitive prices and good quality control

Tailored solutions for customer needs

Research and development to solve any problem

Careful, safe, and reliable packaging

The most cost-effective transportation solution

Professional engineers and production teams can solve any problem

OEM and ODM services
