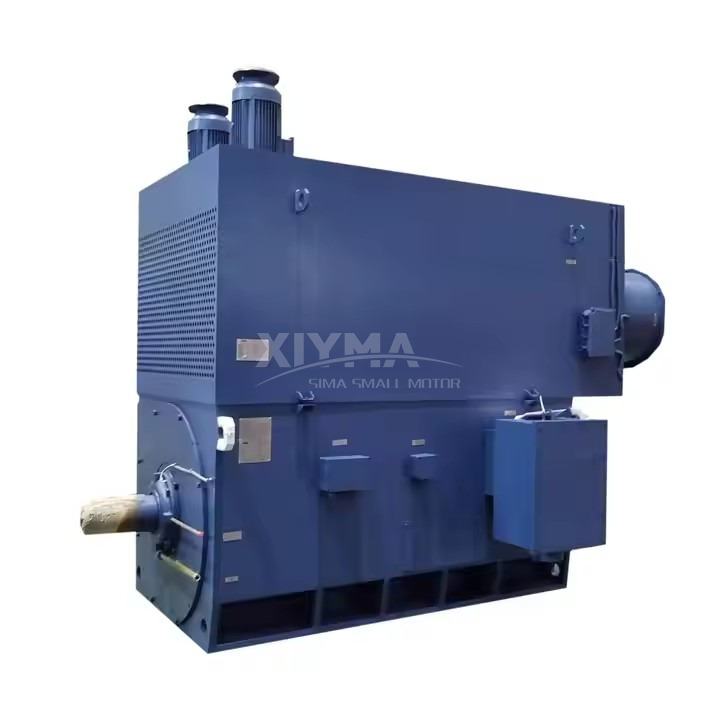

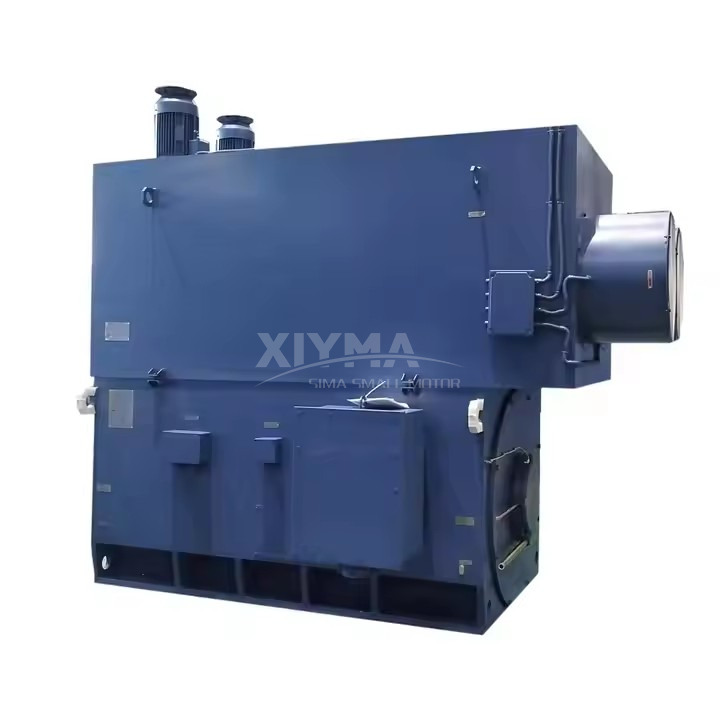

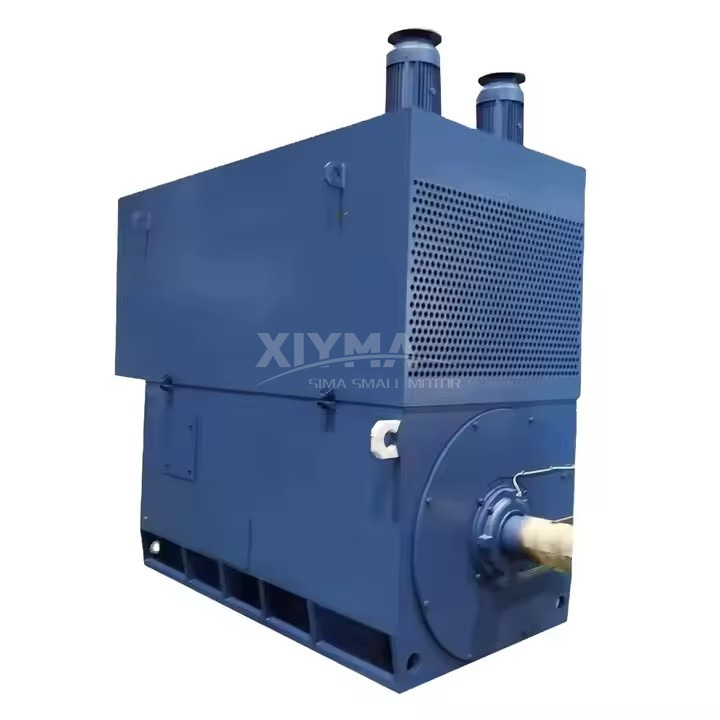

High voltage variable frequency speed regulation 3-phase asynchronous motor

This series of motors is a newly developed medium-sized DC motor since the Z4 series small DC motor. It adopts advanced design and polygonal laminated structure as the stator frame, making full use of space. The entire stator and rotor are treated with solvent-free paint vacuum impregnation (VPI), which gives the winding good moisture resistance and mechanical strength, as well as good insulation and thermal conductivity. The stator yoke, magnetic poles, and armature core are all made of thin silicon steel plates stacked together. This series of motors has the advantages of high efficiency and low noise. When the ambient temperature is between -15 ℃ and+40 ℃, the motor can operate; Altitude ≤ 1 kilometer; The monthly average air humidity is ≤ 90% (if the temperature is 25 ℃).

This series of motors is mainly used in various industrial sectors, such as metallurgical industry rolling mills, metal cutting machines, papermaking, dyeing and weaving, printing, cement, plastic extruders, etc.

The YJTKK series high-voltage variable frequency speed regulating three-phase motor is a squirrel cage rotor asynchronous motor that complies with the GB/T 28562 standard. The motor adopts a welded steel box structure, with customizable dimensions and easy maintenance. The operational responsibility is S1 continuous responsibility, and other responsibilities such as S4, S5, S6, and S9 are also available. The frequency conversion range is 5~50Hz or 5~70Hz. The rated voltage is 6KV, 10KV, and other voltages or special requirements can be provided according to customer requirements. From the end of the shaft extension, the 2-pole motor rotates clockwise. If the customer requires counterclockwise rotation, it must be specified at the time of ordering.

Motor advantages:

YJTKK motors have the advantages of energy saving, good speed regulation performance, low noise, small vibration, light weight, reliable performance, and easy installation and maintenance.

Operating conditions:

The ambient temperature ranges from -15 ℃ to 40 ℃; Altitude ≤ 1km; The monthly average air humidity is ≤ 90% (if the temperature is 25 ℃).

widely used

YJTKK motors can be used to drive various types of machinery. Equipment such as ventilation fans, compressors, pumps, crushers, cutting machines, etc. It can also be used as the driving force for coal mines, machinery industry, and various industrial and mining enterprises.

Warranty period: 1 year

model: Z630-1A-3 723~1118KW

Purpose: STEEL

Type: Brushed motor

Construction: Seperate exciting

Reversing: Flat Comb/Round Comb

Protective feature: Drip and leak proof

Frame size 630

Excitation voltage 220V/110V

Protection grade IP44

Insulation 155 (F) Grade

Mounting IMB3

Cooling type ICW37A86

Duty S1

Ambient Temperature -15℃ ~ +40℃

Altitude ≤1000m

Humidity Average monthly peak relative humidity is 90%

Q: Are you a manufacturer or a trading company/distributor?

Answer: We are a manufacturer of electric motors. We directly trade our products with customers.

Q: Can you do OEM and ODM?

Answer: Yes, both OEM and ODM are acceptable. Specifications, colors, and sizes can be customized.

Q: What are the payment terms?

Answer: 30% T/T in advance and 70% balance before delivery.

Q: Do you have the motor in stock?

Answer: We have a large inventory of electric motors, including IEC motors, DC motors, and high-voltage motors. However, inventory is dynamic and not every model has stock. Please confirm before placing an order.

Q: What is your delivery time?

Answer: If the motor is in stock, it can be delivered within 7 days.

If not, the delivery time varies for different types, usually ranging from 60 to 90 days.

Q: What is the minimum order quantity for this project?

Answer: 1 set per item.

Q: How is your package?

Answer: All exported motors will be well packaged to avoid any possible damage during transportation. Inside is vacuum tin foil packaging, and outside is a solid wooden box. The motor will be firmly fixed on the base of the box.

Q: How long is your warranty period?

Answer: One year from the date of delivery.

Q: Can you provide original proof?

Yes, of course.
