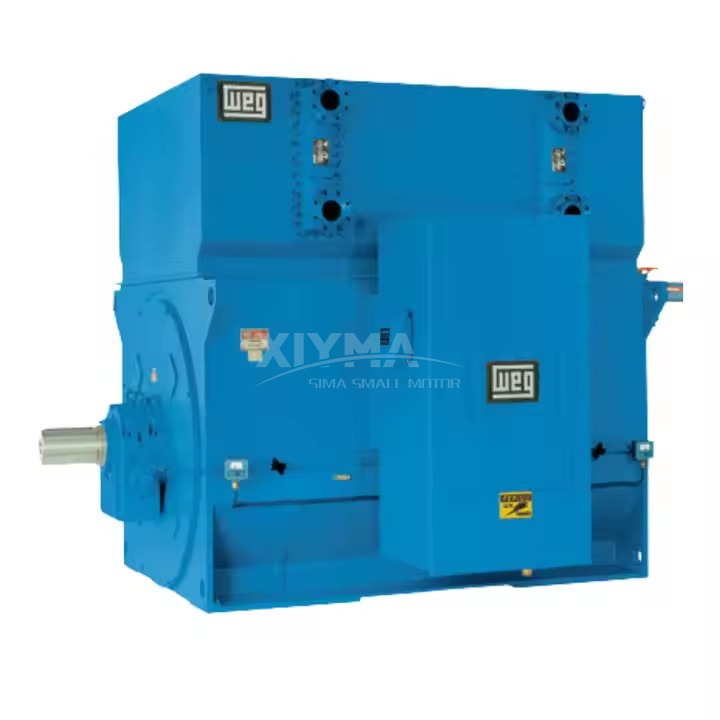

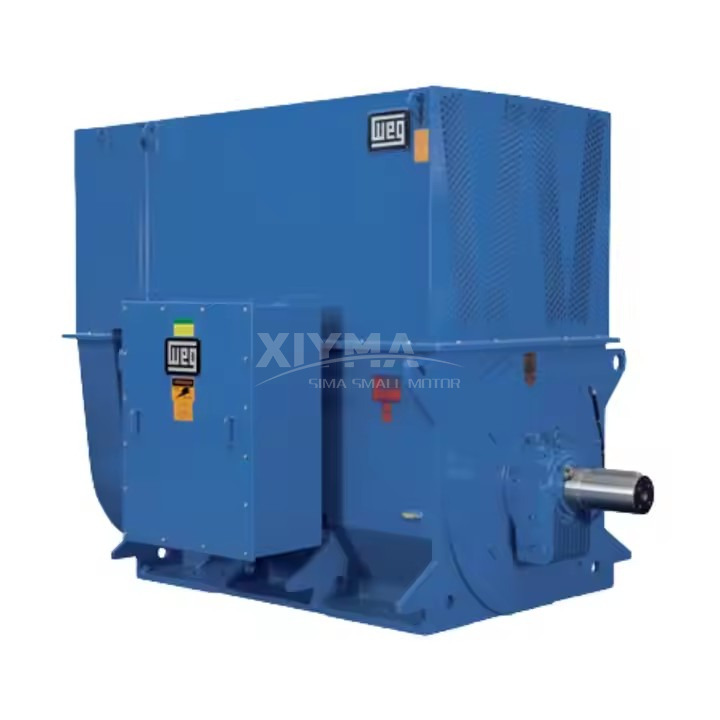

W60 Metallurgical High Voltage AC Motor Three phase AC Asynchronous Motor

This series of motors is a newly developed medium-sized DC motor since the Z4 series small DC motor. It adopts advanced design and polygonal laminated structure as the stator frame, making full use of space. The entire stator and rotor are treated with solvent-free paint vacuum impregnation (VPI), which gives the winding good moisture resistance and mechanical strength, as well as good insulation and thermal conductivity. The stator yoke, magnetic poles, and armature core are all made of thin silicon steel plates stacked together. This series of motors has the advantages of high efficiency and low noise. When the ambient temperature is between -15 ℃ and+40 ℃, the motor can operate; Altitude ≤ 1 kilometer; The monthly average air humidity is ≤ 90% (if the temperature is 25 ℃).

This series of motors is mainly used in various industrial sectors, such as metallurgical industry rolling mills, metal cutting machines, papermaking, dyeing and weaving, printing, cement, plastic extruders, etc.

Warranty period: 1 year

model: Z630-1A-3 723~1118KW

Purpose: STEEL

Type: Brushed motor

Construction: Seperate exciting

Reversing: Flat Comb/Round Comb

Protective feature: Drip and leak proof

Frame size 630

Excitation voltage 220V/110V

Protection grade IP44

Insulation 155 (F) Grade

Mounting IMB3

Cooling type ICW37A86

Duty S1

Ambient Temperature -15℃ ~ +40℃

Altitude ≤1000m

Humidity Average monthly peak relative humidity is 90%

Q: Are you a factory or a trading company?

Answer: Rop is a factory that has been specializing in motors and accessories for over 12 years.

Q: What about the warranty?

Answer: We offer a 12-month warranty period as a quality assurance.

Q: How is your service?

Answer: We offer pre-sales, in sales, and after-sales services. We pursue long-term cooperation, so our principle is customer first.

Q: What are your delivery terms?

Answer: Usually we ship at FOB price, but we can provide CIF and EXW solutions according to your requirements. Provide door-to-door service.

Q: What is the delivery time?

Answer: 20 to 30 days after receiving payment in advance.

model: W60 IP23

Type: Asynchronous motor

Frequency: 50/60HZ

Phase: Three phase

Protective feature: open self ventilation

Motor efficiency: high efficiency

Cooling method: IC01、wp-i、wp-ii、ODP

Protection level: IP23

Installation: B3

Insulation level: F

Temperature rise: B

Polar numbers: 2, 4, 6, and 8

RTD Pt-100： Two per phase, one per bearing

authentication: EAC、MEPS

Frame 355 and 400: Aluminum die cast rotor

Frames 450-560: Copper rod rotor
