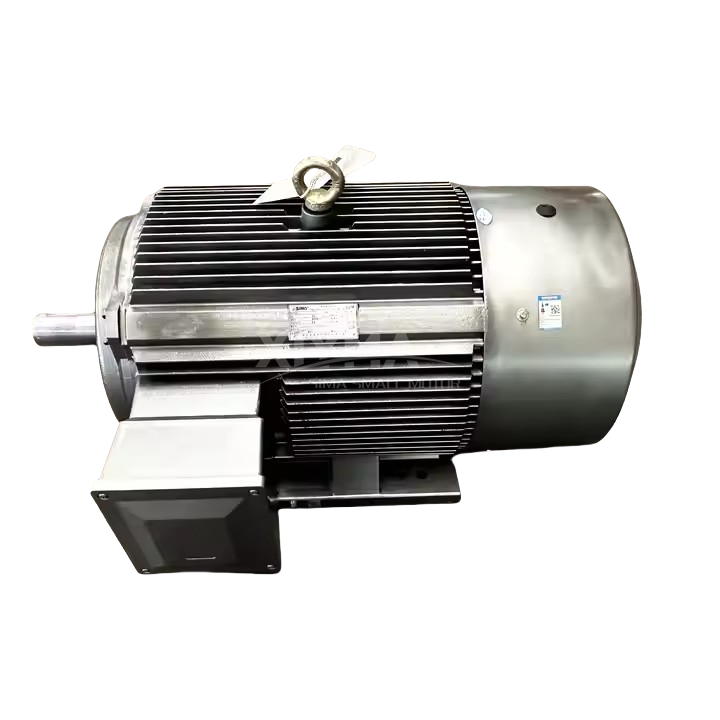

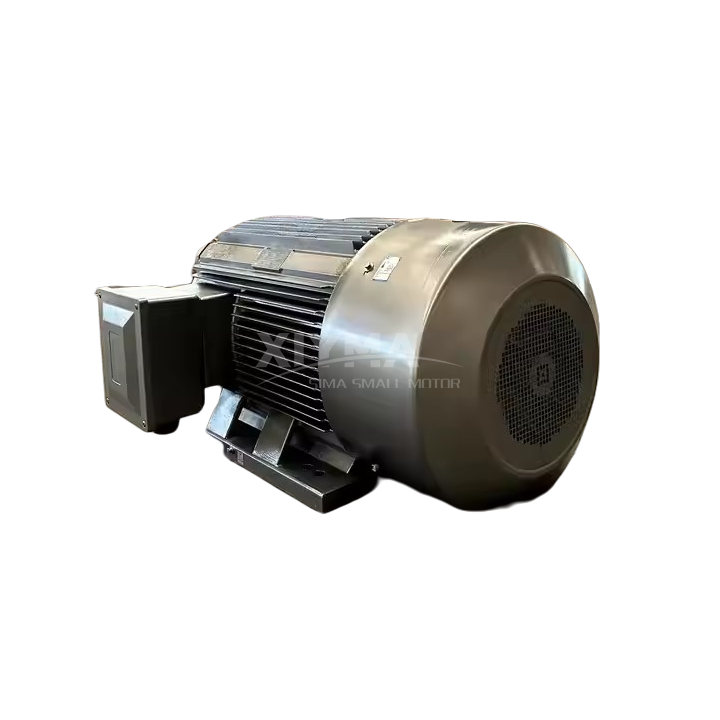

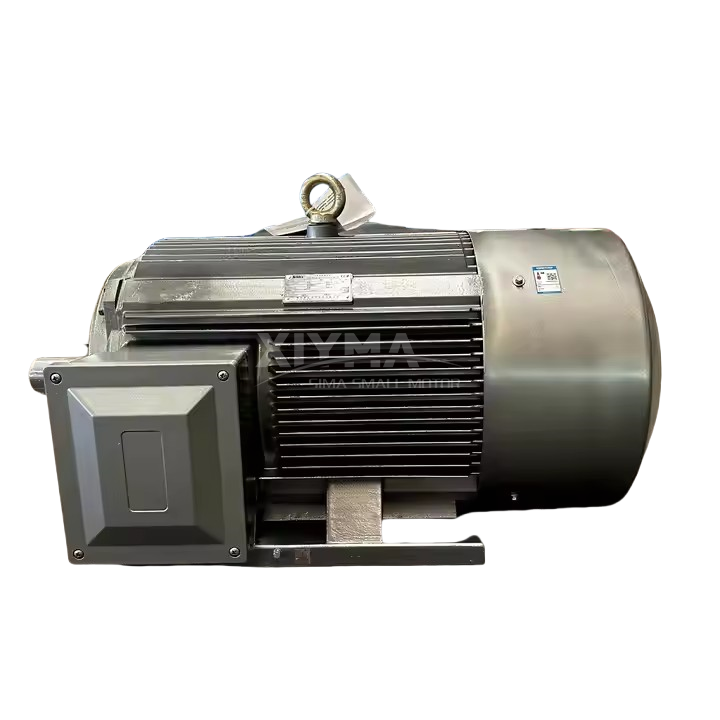

Low voltage AC three-phase asynchronous motor50Hz60 Hz

Warranty period: 1 year

model: YE5 200L-2/4/6/8 3phase motor

Type: Asynchronous motor

Frequency: 50Hz/60 Hz

Phase: Three phase

Protective feature: fully enclosed

Motor efficiency: IE5

Frame Size：200

Rated Power：15Kw-37kWW

No. Of Poles：2P, 4P, 6P, 8P

Insulation：155(F)Grade

Mounting Type：IM B3

Cooling Type：IC411

Vibration：≤1.8mm/s

Ambient Temperature：-15℃ ~ +40℃

Connection：Delta/Y

Humidity Average monthly peak relative humidity is 90%

This series of motors is an ultra efficient and energy-saving three-phase asynchronous motor independently developed by our company. The cooling method is 1C411, which complies with GB/T 755 "Rotating Electrical Machines - Rating and Performance" and JB/T13299-2017 "YE5 Series (P55) High Efficiency Three Phase Induction Motor Specification" (frame size 63-355). Its efficiency value complies with the Level 1 energy efficiency standard in GB 18613-2012 and is consistent with lE4 in the international standard IEC 60034-30 "Single Speed Level 3 Energy Efficiency Level". Phase cage induction motor. This series of products can completely replace outdated products of Y, YGM, YGM2, YE2, YE3, YE4 series low-voltage three-phase asynchronous motors.

This series of motors has the advantages of excellent performance, high efficiency, energy saving, large temperature rise margin, long service life, low vibration, good starting performance, beautiful appearance, high reliability, etc. They are usually used to drive water pumps, fans, compressors, conveyors and other transmission machinery in energy-saving and environmental protection renovation projects, national water conservancy projects, etc

Q: Are you a manufacturer or a trading company/distributor?

Answer: We are a manufacturer of electric motors. We directly trade our products with customers.

Q: Can you do OEM and ODM?

Answer: Yes, both OEM and ODM are acceptable. Specifications, colors, and sizes can be customized.

Q: Our current motor is not from the SIMO brand. Can we replace it with your motor?

Answer: Yes, we have an excellent design and production team, and we have done many successful cases to replace motors from other brands such as ABB and Siemens, WEG， Fuji, TECO, etc.

Q: What are the payment terms?

Answer: 30% T/T in advance and 70% balance before delivery.

Q: Do you have the motor in stock?

Answer: We have a large inventory of electric motors, including IEC motors, DC motors, and high-voltage motors. However, inventory is dynamic and not every model has stock. Please confirm before placing an order.

Q: What is your delivery time?

Answer: If the motor is in stock, it can be delivered within 7 days.

If not, the delivery time varies for different types, usually ranging from 60 to 90 days.

Q: What is the minimum order quantity for this project?

Answer: 1 set per item.

Q: How is your package?

Answer: All exported motors will be well packaged to avoid any possible damage during transportation. Inside is vacuum tin foil packaging, and outside is a solid wooden box. The motor will be firmly fixed on the base of the box.

Q: How long is your warranty period?

Answer: One year from the date of delivery.

Q: Can you provide original proof?

Yes, of course.

Efficient and energy-saving:

Modern motors use technologies such as permanent magnet materials and variable frequency control, which significantly improve energy efficiency (such as IE4 and IE5 high-efficiency motors), meet global energy conservation and emission reduction needs, and reduce long-term user costs.

Intelligence and integration:

By combining the Internet of Things (IoT), AI algorithms, and sensor technology, remote monitoring, fault warning, and adaptive adjustment can be achieved to improve equipment operation efficiency and maintenance convenience.

Material Innovation:

The application of lightweight design (such as aluminum shell motors), high-temperature resistant insulation materials, and rare earth permanent magnet materials has expanded the applicability of motors (such as new energy vehicles, aerospace).

Stable demand in traditional fields:

The demand for motors in traditional industries such as industrial manufacturing, home appliances, and power systems continues to grow, especially with the upgrading of industrial automation driving the demand for precision servo motors.

Global layout:

As a universal equipment, motors have a broad export market, with countries such as China, Germany, and Japan occupying important shares in motor exports.

Mature upstream supply chain:

The supply of raw materials and components such as silicon steel sheets, copper wires, and bearings is stable. As the world's largest producer of rare earths, China ensures the supply of key materials for permanent magnet motors.

Strong midstream manufacturing capability:

Large scale production reduces costs, and the manufacturing cost of Chinese motors is 20% -30% lower than that of Europe and America. At the same time, technology is gradually breaking through to the high-end (such as Huawei and BYD's motor research and development).
