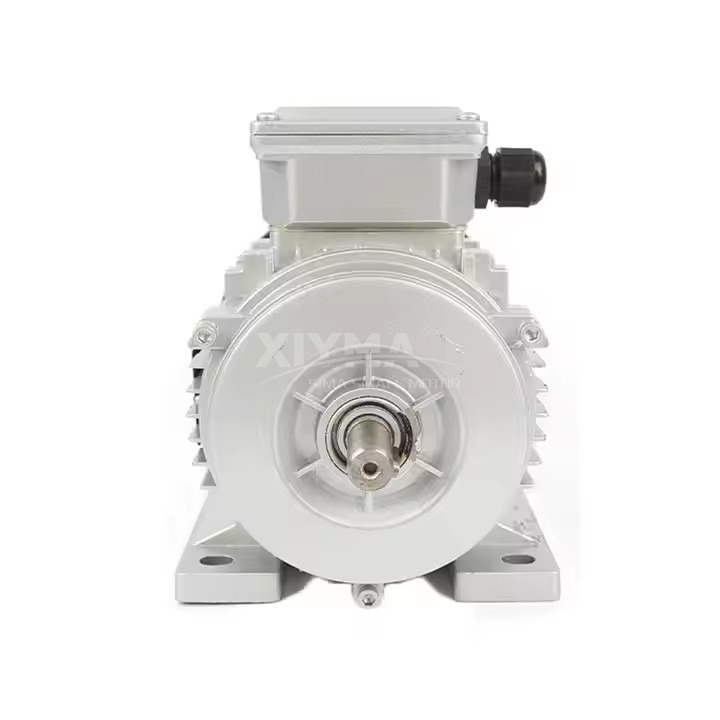

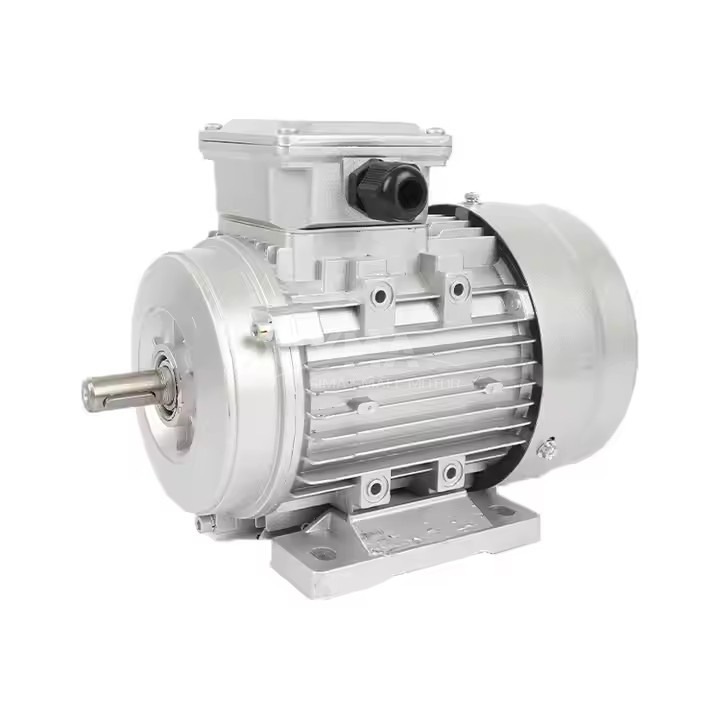

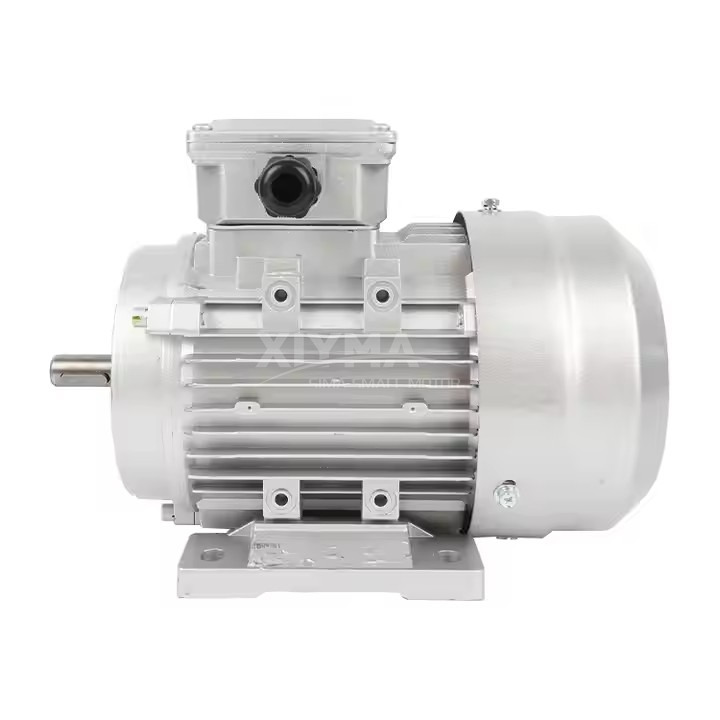

three-phase motor50Hz, 60Hz

Warranty period: 12 months

model: Y2 series

Type: Asynchronous motor

Frequency: 50Hz, 60Hz

Phase: Three phase

Protective feature: Waterproof

Motor efficiency: IE1,IE2,IE3

Ambient temperature：-15℃≤0 ≤40℃

Relative humidity Not higher than 90%

Elevation Be lower than 1000 meters

Operating mode：S1

Cooling method：IC0141

Frame number：60-315

Electrode reach：2P,4P,6P,8P

Protection：IP54,IP55,IP56,IP65,IP66

Synchronous speed：3000r/min,1500r/min,1000r/min,750r/min

Installation type：IMB3,IMB5,IMB35,IMB14,IMB34,IMV1

Q1:  How to choose a suitable electric motor?

A1:  1. Motor type: horizontal (B3) or vertical (B5) vibration motor. Or you can tell me what device you use it for, and we can recommend it to you.

Q2:  Can the motor voltage and machine color be changed?

A2:  Yes, we can change the voltage and color according to your reference.

Q3:  How long is the warranty period for your device?

A3:  Our machine has a 13 month warranty period. During the warranty period, if any quality issues arise, we will provide relevant spare parts (consumable spare parts do not include shipping costs) free of charge.

Three phase asynchronous motor

Three phase motors are widely used in deceleration, lifting machinery, transportation machinery, packaging machinery, printing machinery, food machinery, and engineering machinery.

The main types are as follows:

YS series low-power three-phase asynchronous motor

YVF2 series variable frequency speed regulation three-phase asynchronous motor

Y2EJ series electromagnetic braking three-phase asynchronous motor

YB2 series explosion-proof three-phase asynchronous motor

The main parameters are as follows:

1. The frame numbers are 63-355, with a total of 14 frame numbers.

2. Motor rod: 2,4,6,8.

3. Motor power: 0.12kw to 200KW.

4. Installation type: B3，B14，B5，b35。
