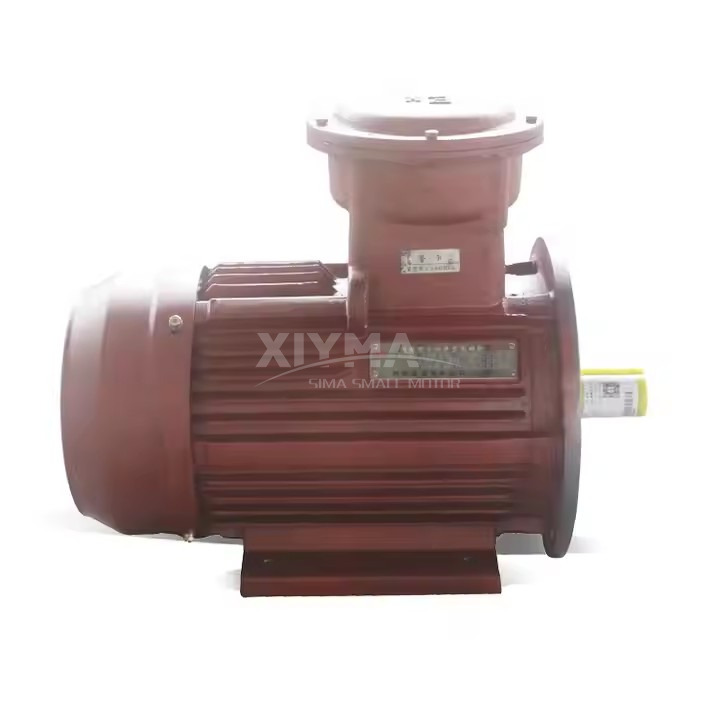

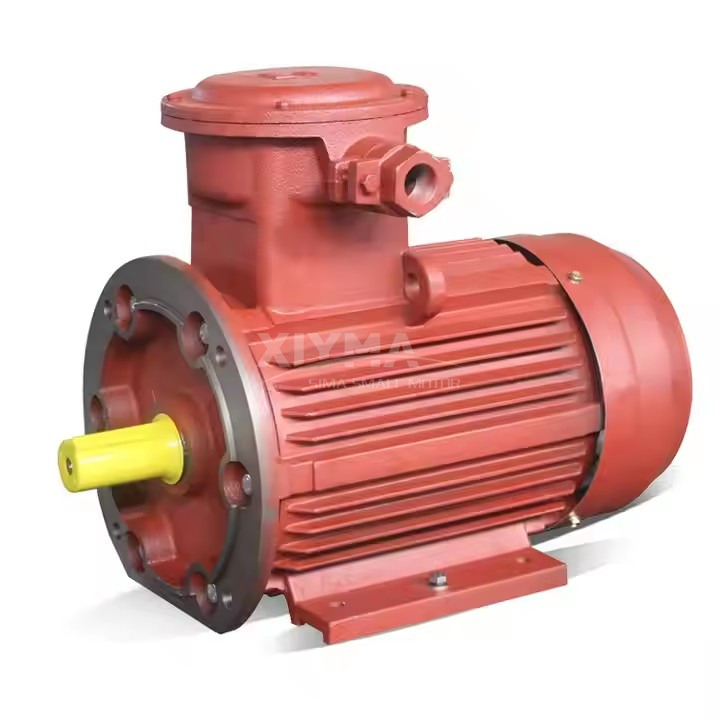

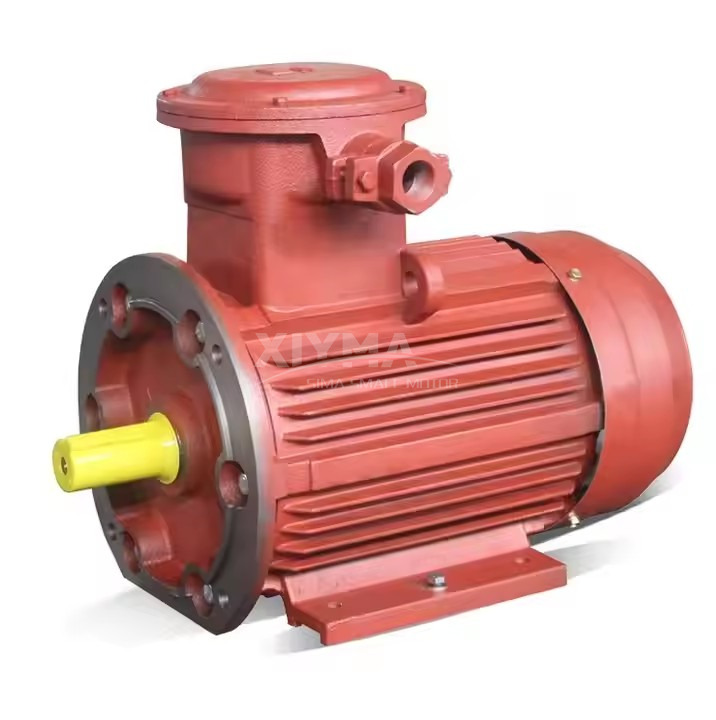

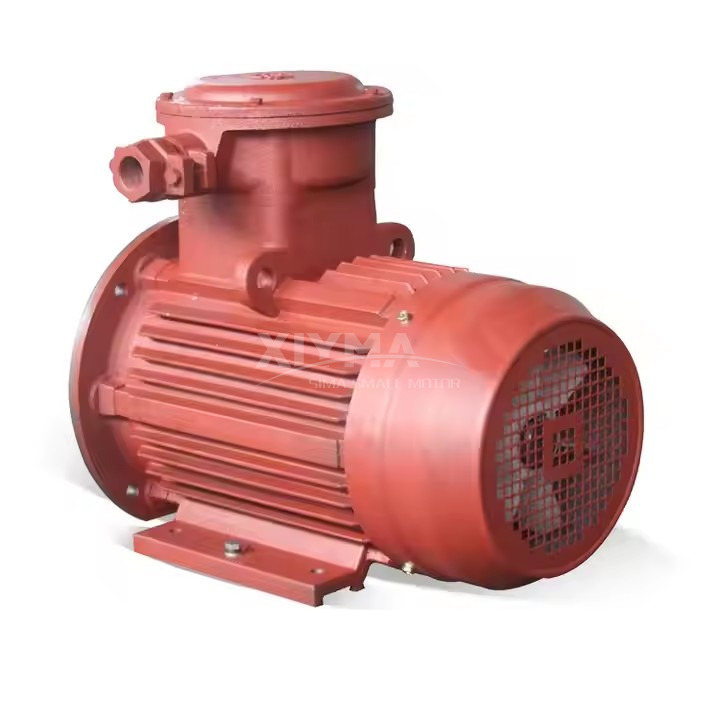

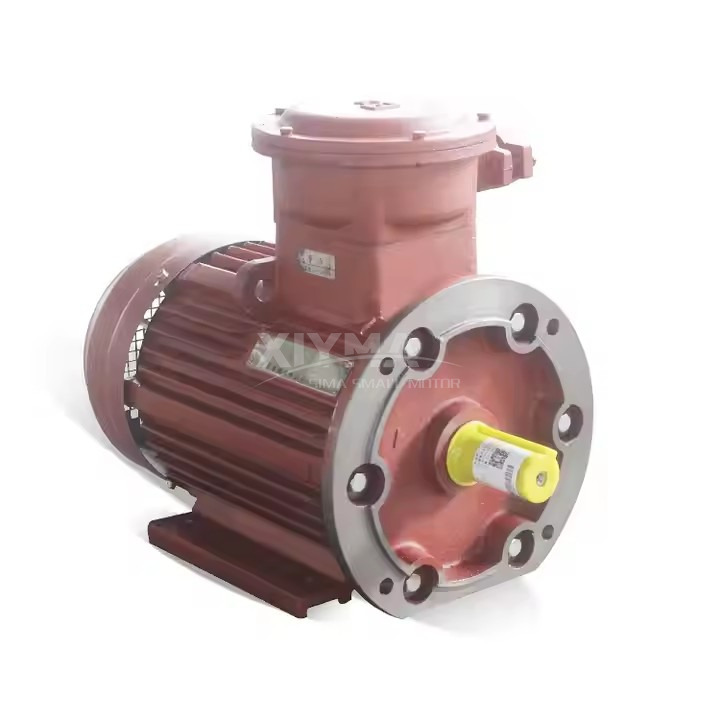

High quality and durable explosion-proof motor AC motor 7.5Kw industrial asynchronous three-phase AC motor

Warranty period 1 year
Model YB3-132M-4-7.5kw
Type asynchronous motor
Frequency 50/60Hz
Phase Three Phase
Protective features: fully enclosed
Motor efficiency IE 2
Explosion proof marks Exd II AT4 Gb, Exd II BT4 Gb, Exd II CT4 Gb.
Certification ISO9001, CCC, CE, ATEX
Frame 80-355
Synchronous Speed 3000rpm-750rpm
Efficiency IE1,IE2,IE3,IE4
Duty S1
Cooling IC411
Terminal Top, Left, Right
Output 0.75~315kw
Protection Degree IP55

Efficient and energy-saving:

Modern motors use technologies such as permanent magnet materials and variable frequency control, which significantly improve energy efficiency (such as IE4 and IE5 high-efficiency motors), meet global energy conservation and emission reduction needs, and reduce long-term user costs.

Intelligence and integration:

By combining the Internet of Things (IoT), AI algorithms, and sensor technology, remote monitoring, fault warning, and adaptive adjustment can be achieved to improve equipment operation efficiency and maintenance convenience.

Material Innovation:

The application of lightweight design (such as aluminum shell motors), high-temperature resistant insulation materials, and rare earth permanent magnet materials has expanded the applicability of motors (such as new energy vehicles, aerospace).

YB3 series explosion-proof three-phase asynchronous motor

Explosion proof performance meets the requirements of GB3836.1-2021 Explosive Environment Part 1: General Requirements

Equipment and GB3836.2-2021 Explosive Environment Part 2: Equipment protected by explosion-proof enclosure "d".

According to IEC60034-30-1, motor EFF The grade value complies with IE2.

It is suitable for flammable gases or explosive mixtures containing steam and air. Such as petroleum, chemical, urban gas Metallurgy, pharmaceuticals, etc.

Q: Are you a trading company or a manufacturer?

We are manufacturers. Q: What are the payment terms? A:  Advance 30% T/T, 70%

Pre shipment or sight letter of credit.

Q: What is your delivery time?

Answer: Standard products are available 15 days after receiving the letter of credit or wire transfer deposit.

Q: What is the minimum order quantity for this project?

Answer: One unit is used for small/medium-sized motors, not limited to large motors.

Q: How long is your warranty period?

A:  12 months after receiving the bill of lading.

Q: Can we use our own brand on the motor?

Answer: Yes, we will also provide OEM and ODM services.
