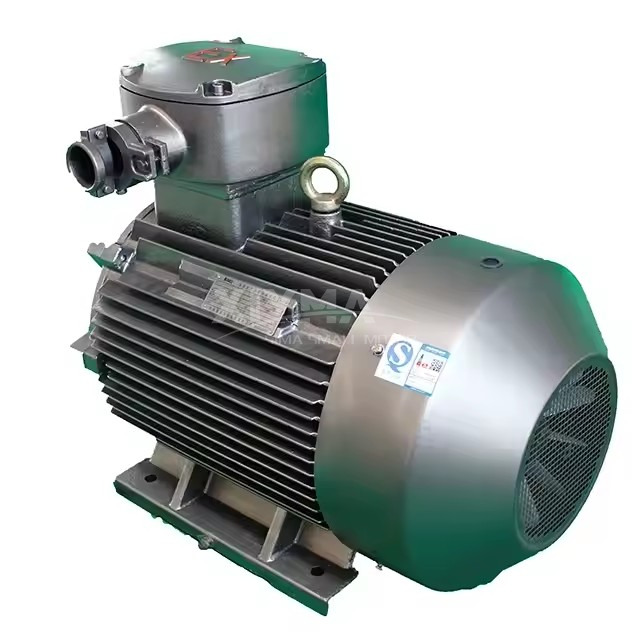

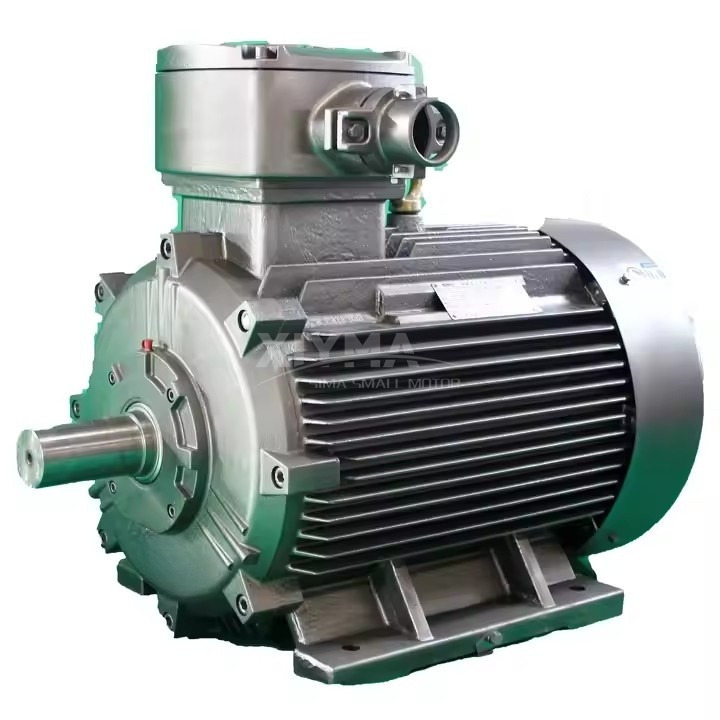

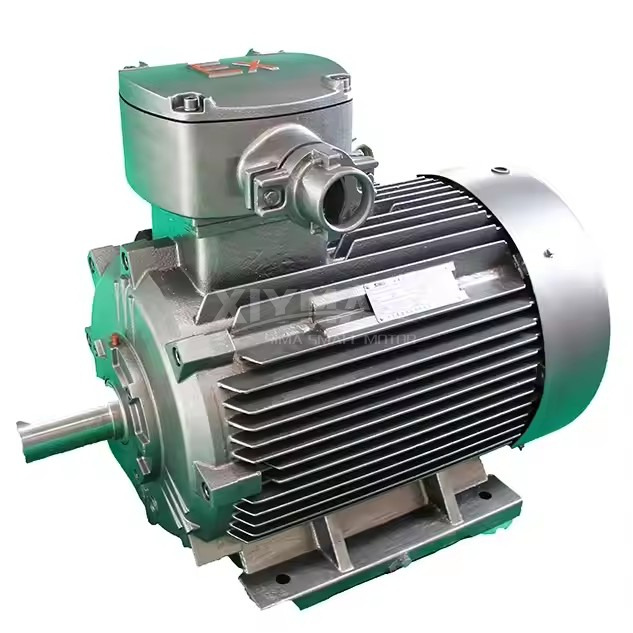

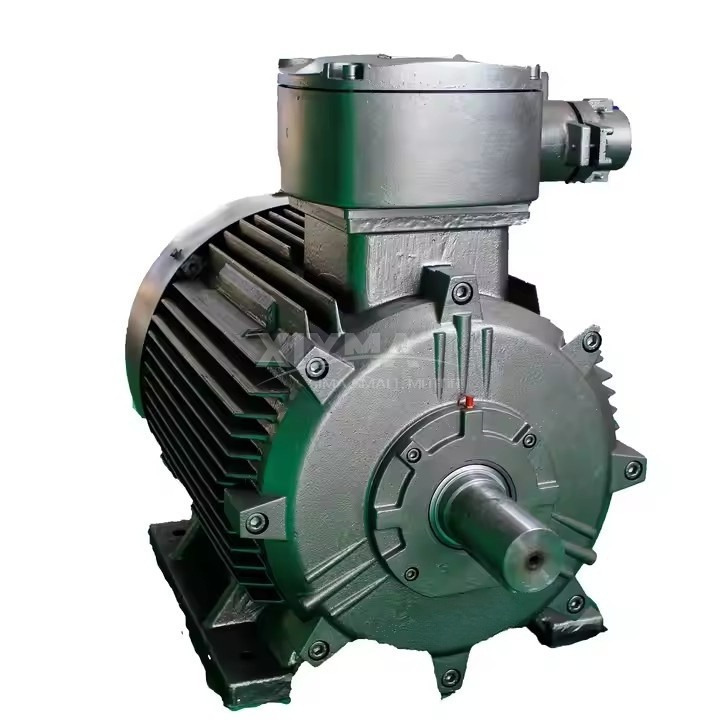

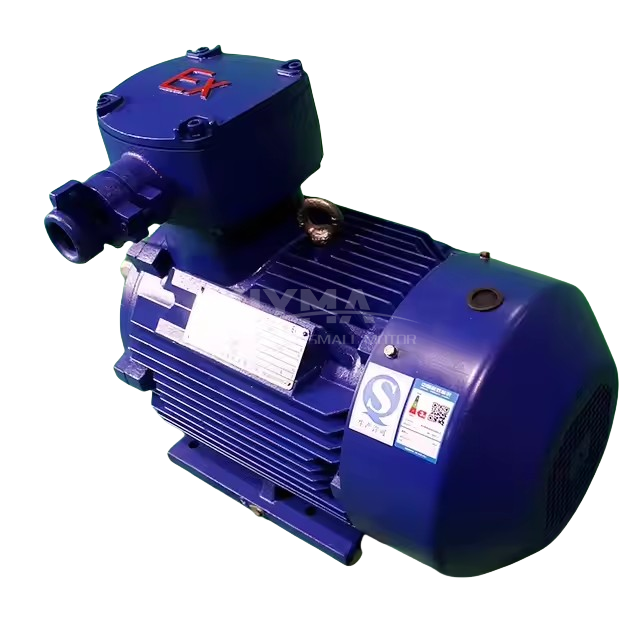

YBK3-200L-2468 IE3 60hz 37KW mining explosion-proof motor

Warranty period of 1 year

Model YBK3 200L-2/4/6/8 Explosion proof Motor

Frequency 50/60Hz

Phase Three Phase

Protective features Explosion proof

Motor efficiency IE3

Frame size 200

Power supply 15~37KW

Explosion proof mark Exd I Mb

Insulation F

Cooling type IC411

Connect Delta/Y

Responsibility S1

Efficiency level IE3

Environmental temperature -15 ℃~+40 ℃

Installation type IM B3

Efficient and energy-saving:

Modern motors use technologies such as permanent magnet materials and variable frequency control, which significantly improve energy efficiency (such as IE4 and IE5 high-efficiency motors), meet global energy conservation and emission reduction needs, and reduce long-term user costs.

Intelligence and integration:

By combining the Internet of Things (IoT), AI algorithms, and sensor technology, remote monitoring, fault warning, and adaptive adjustment can be achieved to improve equipment operation efficiency and maintenance convenience.

Material Innovation:

The application of lightweight design (such as aluminum shell motors), high-temperature resistant insulation materials, and rare earth permanent magnet materials has expanded the applicability of motors (such as new energy vehicles, aerospace).

This series of underground explosion-proof three-phase asynchronous motors in coal mines is based on our company's YBX3 series high-efficiency explosion-proof three-phase asynchronous motor, combined with advanced electromagnetic structure, processing technology and materials. This series of motors complies with Chinese fire prevention standards GB/T 3836.1, GB/T 3836.2, and MT 451-2011. The coolant mode is IC411, and the fire protection label is Ex db Ⅰ Mb. The motor performance meets the requirements of the Chinese explosion-proof motor industry standard JB/Mining explosion-proof three-phase asynchronous motor T9593.1-2015 specification Part 1: YBK3 series flame-retardant three-phase asynchronous motors for coal mines (frame size H80 to 355). The efficiency meets the GB18163-2020 Level 3 energy efficiency standard, equivalent to the IE3 efficiency level of IEC60034-30 single speed three-phase squirrel cage induction motor. It has the characteristics of excellent flame retardant performance, compact structure, high efficiency, energy saving, and convenient maintenance in the later stage. It is a new product independently developed by our company by combining the latest technologies in electromagnetic structure, process, materials and other aspects at home and abroad. This series of motors is widely used in hazardous areas, such as explosive gas environments and underground coal mining workplaces.

Q: Are you a manufacturer or a trading company/distributor?

Answer: We are a manufacturer of electric motors. We directly trade our products with customers.

Q: Can you do OEM and ODM?

Answer: Yes, both OEM and ODM are acceptable. Specifications, colors, and sizes can be customized.

Q: What are the payment terms?

Answer: 30% T/T in advance and 70% balance before delivery.

Q: Do you have the motor in stock? Answer: We have a large inventory of electric motors, including IEC motors, DC motors, and high-voltage motors. However, inventory is dynamic and not every model has stock. Please confirm before placing an order.

Q: What is your delivery time?

Answer: If the motor is in stock, it can be delivered within 7 days. If not, the delivery time varies for different types, usually ranging from 60 to 90 days.

Q: What is the minimum order quantity for this project?

Answer: 1 set per item.

Q: How is your package? Answer: All exported motors will be well packaged to avoid any possible damage during transportation. Inside is vacuum tin foil packaging, and outside is a solid wooden box. The motor will be firmly fixed on the base of the box.

Q: How long is your warranty period?

Answer: One year from the date of delivery.

Q: Can you provide original proof?

Answer: Yes, of course.
